As compact as it gets! Our 2.4 Pickup is designed to offer unmatched off-road versatility, unparalleled amphibious features, seating for four, and a 2,000 lbs payload. It features four hydraulic motors, reducing maintenance needs. Tested in extreme conditions, it provides comfort with effective heating and cooling systems, ensuring reliability and performance in any environment. It is fully customizable with a wide range of options and accessories.–
Joystick
Towing Capacity 3,000 lbs
Automatic Braking System
Maximum Speed 20 mph
Payload 2,000 lbs
Customization with 41 options
Up to 4 Passengers
Performance
Payload | up to 2,000 lbs (905 kg) |
Passenger capacity | 4 (2 front + 2 rear) |
Maximum speed on land | 20 mph (32 km/h) |
Maximum speed on water | 3.1 mph (5 km/h) |
Maximum uphill & downhill | 35°/ 70% |
Maximum sidehill | 22°/ 40% |
Turning radius | 0° |
Base vehicle shipping weight | 4200 lb (1900 kg) |
Ground pressure fully loaded | 2 lb/po2 (0.14 kg/cm2) |
Safety features
ROPS | ISO 3471 |
Brakes | Automatic safety brake |
Dimensions
Height | 91.5 in (2323 mm) |
Length | 129 in (3283 mm) |
Width | 88 in (2236 mm) |
Ground clearance | 20.6 in (523 mm) |
Controls
Controller | Microprocessor |
Steering | Joystick |
Display | Color display |
Engine
Emission standard | Tierf 4 Final / Stage V |
Make | HATZ |
Model | 3H50TICD |
Number of cylinders | 3 cylinders |
Displacement | 89 po3 (1.46 L) |
Horsepower @ 2400 RPM | 56 hp (42 kW) |
Torque @ 1600 RPM | 136 lb-ft (184 N-m) |
Cooling system | Liquid cooled |
Electrical
Voltage | 12 V |
Alternator capacity | 110 A |
Battery capacity | 960 CCA |
Battery type | AGM |
Transmission
Type | Hydrostatic |
Brakes
Brakes | Positive deceleration through hydrostatic transmission |
Parking brakes | Brake disc applied; pressure released |
Tires
Front & Rear | 52 x 19 x 20 inches |
Pressure | 0.5 to 6 PSI (0.0035 to 0.42 kg/cm2) |
Fuel system
Capacity | 19.5 US Gal (74 L) |
Average fuel autonomy | 12 h |
Standard equipment
Doors | Front |
Operator seats | 2 front seats with 3-points seat belts |
Lights | Front, brakes, position, flashers, dome |
Horn | Electric |
Ingress | Ladders with grab handles |
Standard color | Black |
Fire extinguisher | 2.5 lb ABC |
Bilge pump | |
First aid kit | |
Front and rear bumpers | |
Lockable fuel cap | |
Cup holders | |
Operator & Maintenance manual |
Warranty
Limited 1 year / 1000 hours (whichever comes first) | Â |
Options
- Front LED light bar
- Rear LED light bar
- Side working LED lights front
- 4-corner LED beacon amber lights
- Search light
- Custom color
- Front roof rack
- Front mirrors
- Additional roof rack with front brush guard
- Side ladder for roof
- Rear ROPS
- Rear canopy
- Storage box
- Ladder rack
- Backup camera
- 4-way backup camera
- Tail gate with ladder
- Front winch
- Rear hitch receiver
- Pintle hook
- Backup alarm
- Wheel Podsâ„¢
- Studs for ice
- Variable cooling fan
- D-rings
- Additional battery

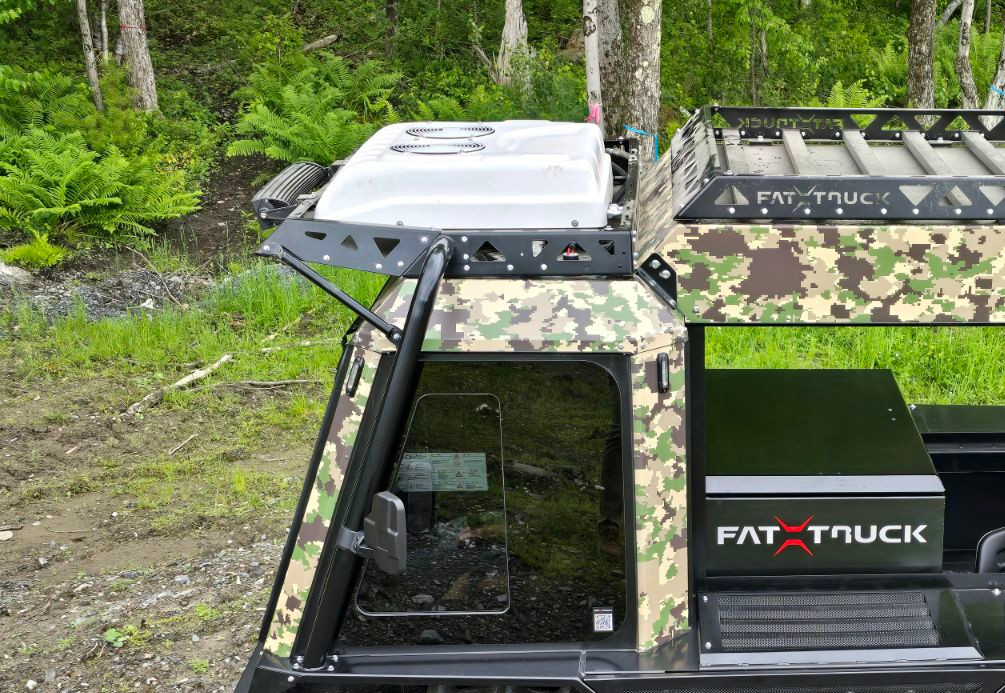

- Air conditioning
- Ventilation fan
- Rear seats with 2-pts safety belts
- Inclinometer with alarm
- Radio Bluetooth
- Front feet heater
- 110V heater cold engine water and transmission oil
- Fuel heater for engine water and transmission oil
Frequently asked questions
What is the required maintenance?
Maintenance is kept to a strict minimum. With oil changes required only every 500 hours, there’s no need for greasing, tensioning, or dealing with chains—just simple oil changes.
What is the payload?
What is the maximum passenger capacity of the vehicle?
Are all the wheels powered?
Equipped with four robust hydrostatic motors, each powering an individual wheel, ensuring optimal traction and control on any terrain.
What is the weight?
The average equipped 2.4 Pick Up only weights 4,500 lbs, combining power and agility effortlessly.
