2.8 Pickup
Our 2.8 Pickup combines superior off-road capabilities with a 2,200 lbs payload and seating for a crew of 8. Tested in extreme conditions, it offers reliable performance, efficient heating and cooling systems, and versatility in both industrial and rugged environments. It is fully customizable with a wide range of options and accessories.
Joystick
Towing Capacity 3,500 lbs
Automatic Braking System
Maximum Speed 25 mph
Payload 2,200 lbs
Customization with 41 options
Up to 8 Passengers
Performance
| Payload | 2200 lbs (1000 kg) |
| Passenger capacity | 2 + 6 optional |
| Maximum speed on land | 25 mph (40 km/h) |
| Maximum speed on water | 3.1 mph (5 km/h) |
| Maximum uphill & downhill | 35°/ 70% |
| Maximum sidehill | 22°/ 40% |
| Turning radius | 0° |
| Base vehicle shipping weight | 4960 lbs (2250 kg) |
| Ground pressure fully loaded | 1.6 lb/po2 (0.11 kg/cm2) |
Safety features
| ROPS | ISO 3471 | |
| Brakes | Automatic safety brake |
Dimensions
| Height | 103 in (2620 mm) |
| Length | 146.5 in (3720 mm) |
| Width | 100 in (2540 mm) |
| Ground clearance | 20.7 in (526 mm) |
Controls
| Controller | Microprocessor |
| Steering | Joystick |
| Display | Color display |
Engine
| Make | Caterpillar |
| Model | C2.2 Turbo diesel |
| Emission standards | EPA Tier 4 Final EU Stage V |
| Number of cylinders | 4 cylinders |
| Displacement | 135 po3 (2.22 L) |
| Horsepower @ 2800 RPM | 74 hp (55 kW) |
| Torque @ 1400 RPM | 199 lb-ft (270 N-m) |
| Cooling System | Liquid cooled |
Electrical
| Voltage | 12 V |
| Alternator capacity | 275 A |
| Battery capacity | 960 CCA |
| Battery type | AGM |
Transmission
| Type | Hydrostatic |
| Final drive | Carbon fiber synchronous belts |
Brakes
| Brakes | Positive deceleration through hydrostatic transmission |
| Parking brakes | Brake disc applied; pressure released |
Tires
| Front & Rear | FAT TRUCK LGP 1640 X 640 X 610 |
| Pressure | 0.5 to 4.5 PSI (0.07 TO 0.31 BAR) |
| Pressure control | Automatic pressure control |
Fuel system
| Capacity | 21 US Gal (80 L) |
| Average fuel autonomy | 12 h |
Standard equipment
| Doors | Lockable |
| Operator seats | 2 front seats with 3-points seat belts |
| Lights | Front, brakes, position, flashers, dome |
| Horn | Electric |

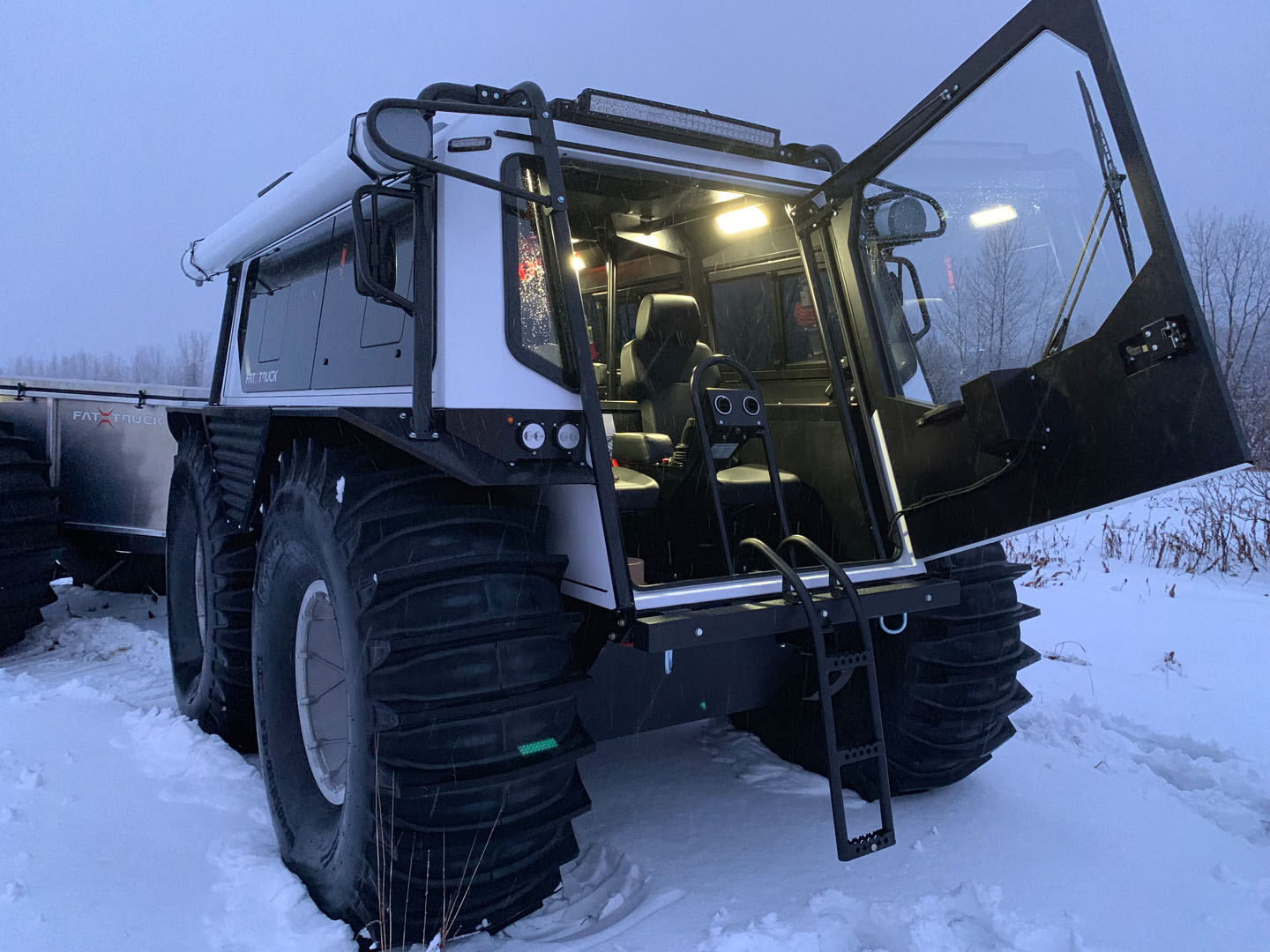

| Ingress | Front ladder with grab handles |
| Standard color | Red or white |
| Fire extinguisher | 2.5 lb ABC |
| Bilge pump | |
| First aid kit | |
| Front and rear bumpers | |
| Lockable fuel cap | |
| Cup holders | |
| Operator & Maintenance manual |
Warranty
| Limited 1 year / 1000 hours (whichever comes first) |
Options
- Front LED light bar
- Rear LED light bar
- Side working LED lights front
- 4-corner LED beacon amber lights
- Search light
- Custom color
- Front roof rack

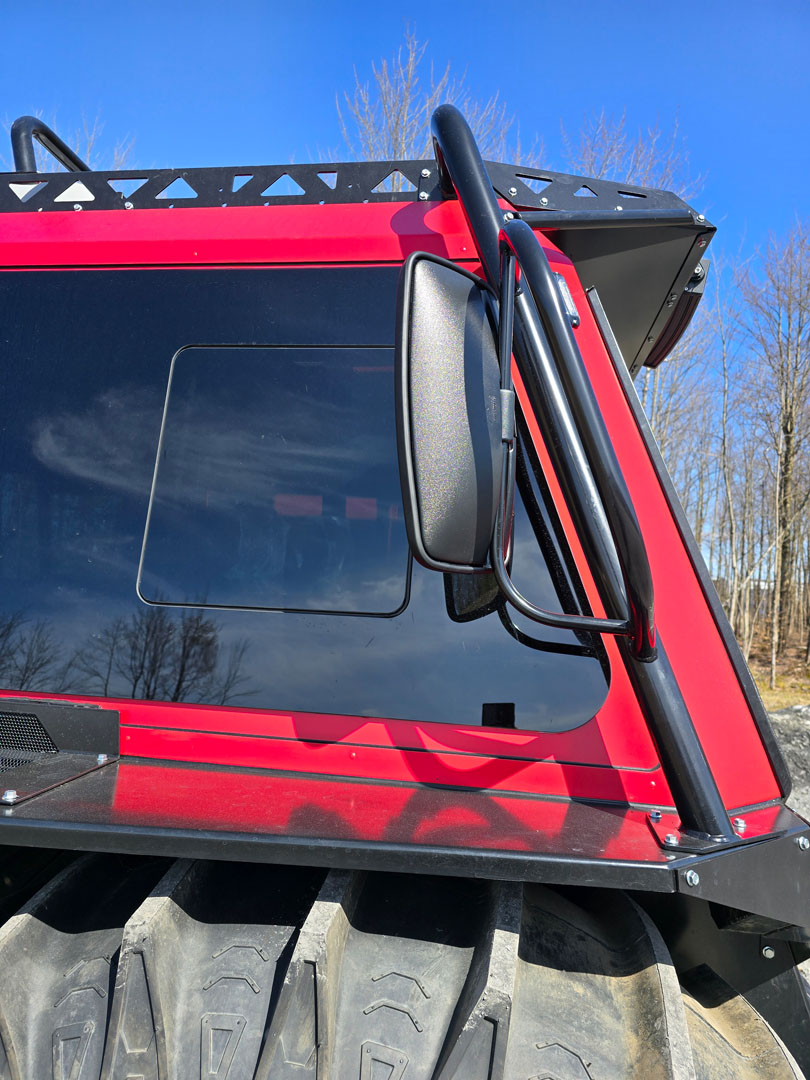

- Front mirrors
- Additional roof rack with front brush guard
- Side ladder for roof
- Rear ROPS
- Storage box
- Hot sticks storage tubes

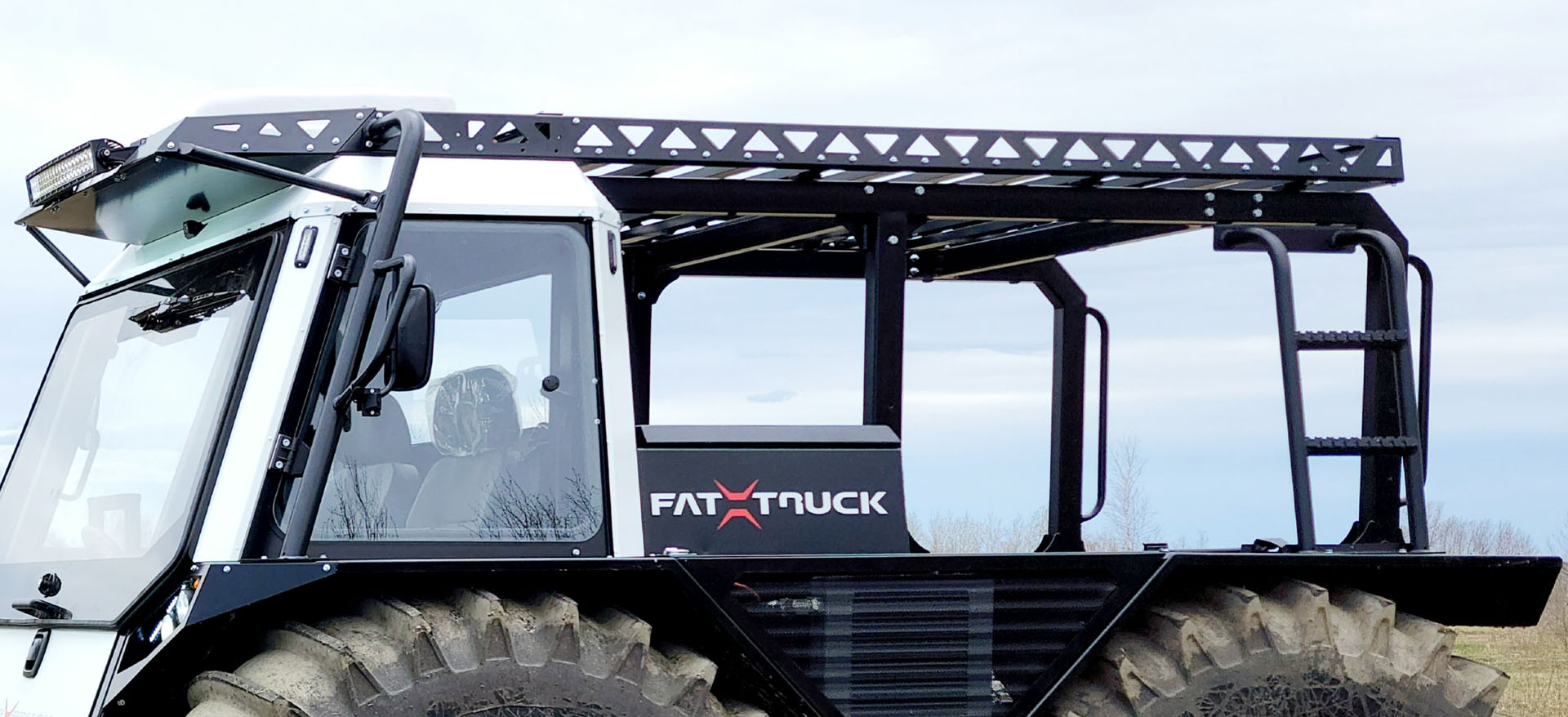

- Ladder rack
- Backup camera
- 4-way backup camera
- Tail gate with ladder
- Front winch

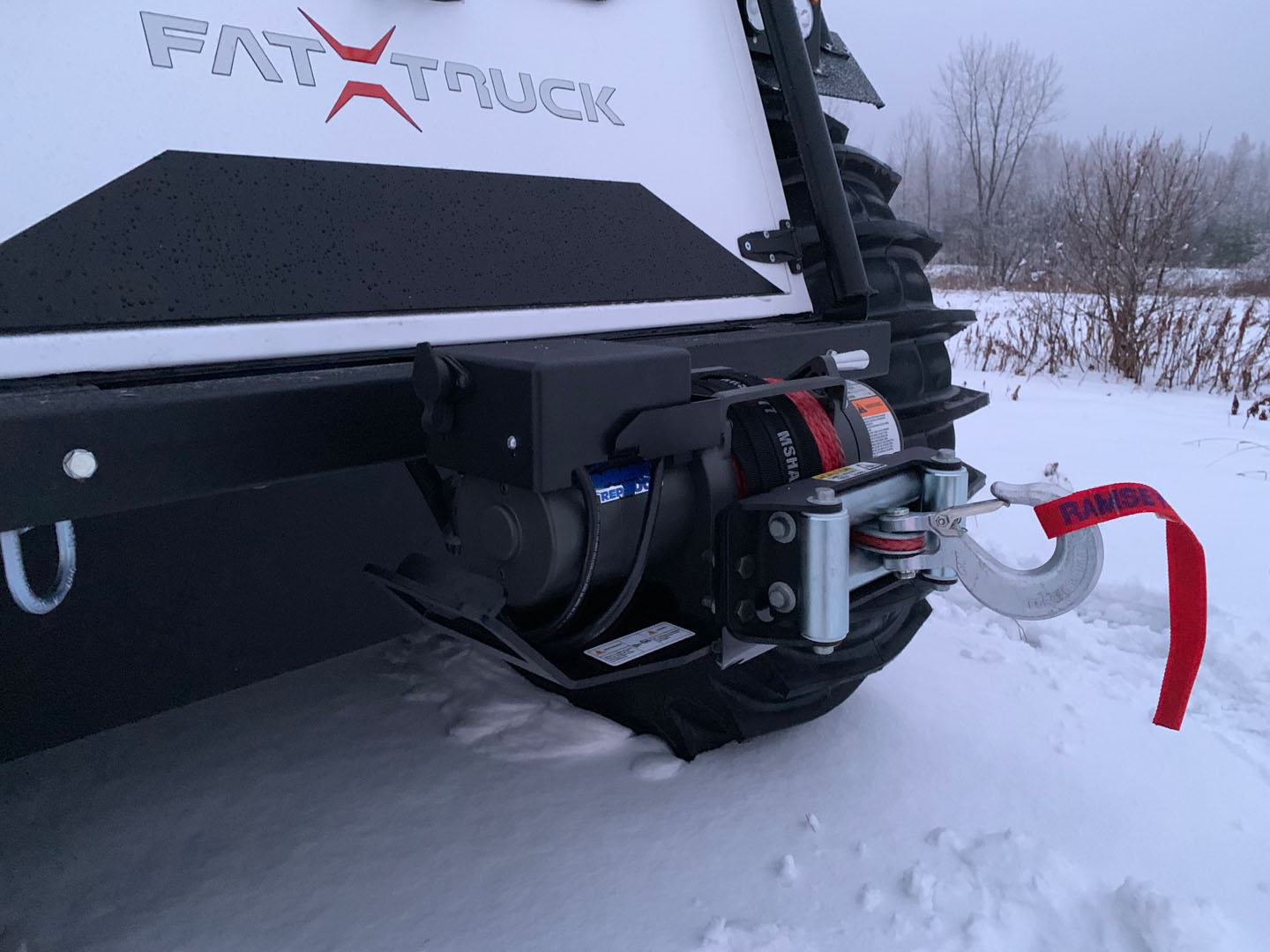

- Rear capstan winch
- Rear hitch receiver
- Pintle hook
- Backup alarm
- Wheel Pods™
- Studs for ice
- D-rings
- Additional battery
- Air conditioning
- Ventilation fan
- Rear seats with 2-pts safety belts
- Rear seats with 3-pts safety belts
- Rear forward facing seats
- Inclinometer with alarm
- Radio Bluetooth
- Front feet heater
- 110V heater cold engine water and transmission oil
- Fuel heater for engine water and transmission oil
Frequently asked questions
Can a small crane be added?
A small crane can seamlessly be added to the back of this off-road utility vehicle for enhanced functionality.
What is the payload?
Astonishingly, this vehicle boasts a payload capacity of 2,200 lbs on any terrain and even on water.
What is the maximum water depth this truck can navigate?
This fully amphibious vehicle floats effortlessly, allowing it to traverse lakes with ease.
Is it possible to equip this vehicle with a water tank for firefighting purposes?
Certainly, a 150-gallon water tank with a foam system and reels can be installed in the bed of the unit. The 2.8 Pickup has been extensively utilized for combating wild forest fires.
How wide is the Fat Truck 2.8 Pickup?
At 100 inches wide, this vehicle offers exceptional stability and maneuverability, making it ideal for challenging terrains.
What is the maximum passenger capacity of the vehicle?
Comfort all around for 2 passengers in the front and 2 passengers in the back, with the certified ROPS. (Roll Over Protection Structure).
