8x8 Hauler
Our 8×8 Hauler excels in extreme off-road conditions, offering a 5,000 lbs payload and seating for up to 4 passengers. Engineered for reliability, it features advanced safety systems and amphibious capabilities. Ideal for industrial applications, it ensures robust performance and versatility in harsh environments.
Joystick
Towing Capacity 3,500 lbs
Automatic Braking System
Maximum Speed 25 mph
Payload 5,000 lbs
Customization with 41 options
Up to 4 Passengers
Performance
| Payload Front Car | 1000 lb (452 kg) |
| Payload Rear Car | 4000 lb (1364 kg) |
| Passengers | 4 front |
| Maximum speed on land | 25 mph (40 km/h) |
| Maximum speed on water | 3.1 mph (5 km/h) |
| Maximum uphill & downhill | 35°/ 70% |
| Maximum sidehill | 22°/ 40% |
| Turning radius | 24 ft (7.3 m) |
| Base vehicle weight | 14 000 lb (6350 kg) |
| Ground pressure loaded | 1.9 psi (0.13 bar) |
Safety features
| ROPS | ISO 3471 |
| Brakes | Automatic safety brake |
Dimensions
| Height | 111 in (2794 mm) |
| Overall Length | 325 in (8255 mm) |
| Width | 100 in (2540 mm) |
| Ground clearance | 25 in (635 mm) |
Controls
| Controller | Microprocessor |
| Steering | Joystick |
| Display | Rugged touch screen |
Engine
| Make | Cummins |
| Model | F3.8 Turbo diesel |
| Emission standards | EPA Tier 4 Final EU Stage V |
| Number of cylinders | 4 cylinders |
| Displacement | 232 in3 (3.8 L) |
| Horsepower @ 2500 RPM | 173 HP (129 kw) |
| Torque @ 1500 RPM | 457 lb-ft (620 N-m) Liquid cooled |
| Cooling System | Liquid cooled |
Electrical
| Voltage | 12 V |
| Alternator capacity | 150 A |
| Battery capacity | 2 x 930 CCA |
| Battery type | AGM |
Brakes
| Brakes | Positive deceleration through hydrostatic transmission |
| Parking brakes | Brake disc applied; pressure released |
Tires
| Front & Rear | FAT TRUCK LGP 1640 X 640 X 610 |
| Pressure | 0.5 to 6 PSI (0.07 TO 0.41 BAR) |
| Pressure control | Presets and variable pressure controls |
Powertrain
| Type | Hydrostatic |
| Final drive | 8 x Hydrostatic motors |
Fuel system
| Capacity | 45 US Gal (170 L) |
| Driving range | 186 miles (300 km) |
| Average fuel autonomy | 12 h |
| Urea tank | 8.33 US gal (31.5 L) |
Front car standard equipment
| Lockable doors | |
| Ladder, steps, grab handles | |
| 2 x Seats with 3-points seat belts | |
| Lights (LED): Front, brakes, position, flashers, dome | |
| LED beacon lights | |
| Front LED bar | |
| Electric horn | |
| Heater / Defroster | |
| Back up camera 4-way camera system | |
| Electronic iInclinometer | |
| Roof hatch | |
| Brush guard | |
| Exterior mirrors | |
| Lockable fuel cap | |
| Bilge pump | |
| Front bumper | |
| 4 x Sliding side windows | |
| 2 x D-rings | |
| Standard color: Red or White | |
| LED rear light bar | |
| First aid kit | |
| Emergency hammer | |
| Fire extinguisher 2.5 lb. ABC | |
| Operator & Maintenance manual | |
| Wheel pods TM |
Rear car standard equipment
| LED stops, signals, backup lights | |
| Bilge pump | |
| Backup alarm | |
| Rear hitch | |
| Tail gates with ladder | |
| 8 x Tie downs | |
| Wheel pods TM | |
| 2 x D-rings |
Warranty
| Limited 1 year / 1000 hours (whichever comes first) |
Options
- Search light
- Custom color
- Storage box
- Hot sticks storage tubes
- Front winch
- Rear capstan winch
- Pintle hook
- Studs for ice
- Air conditioning

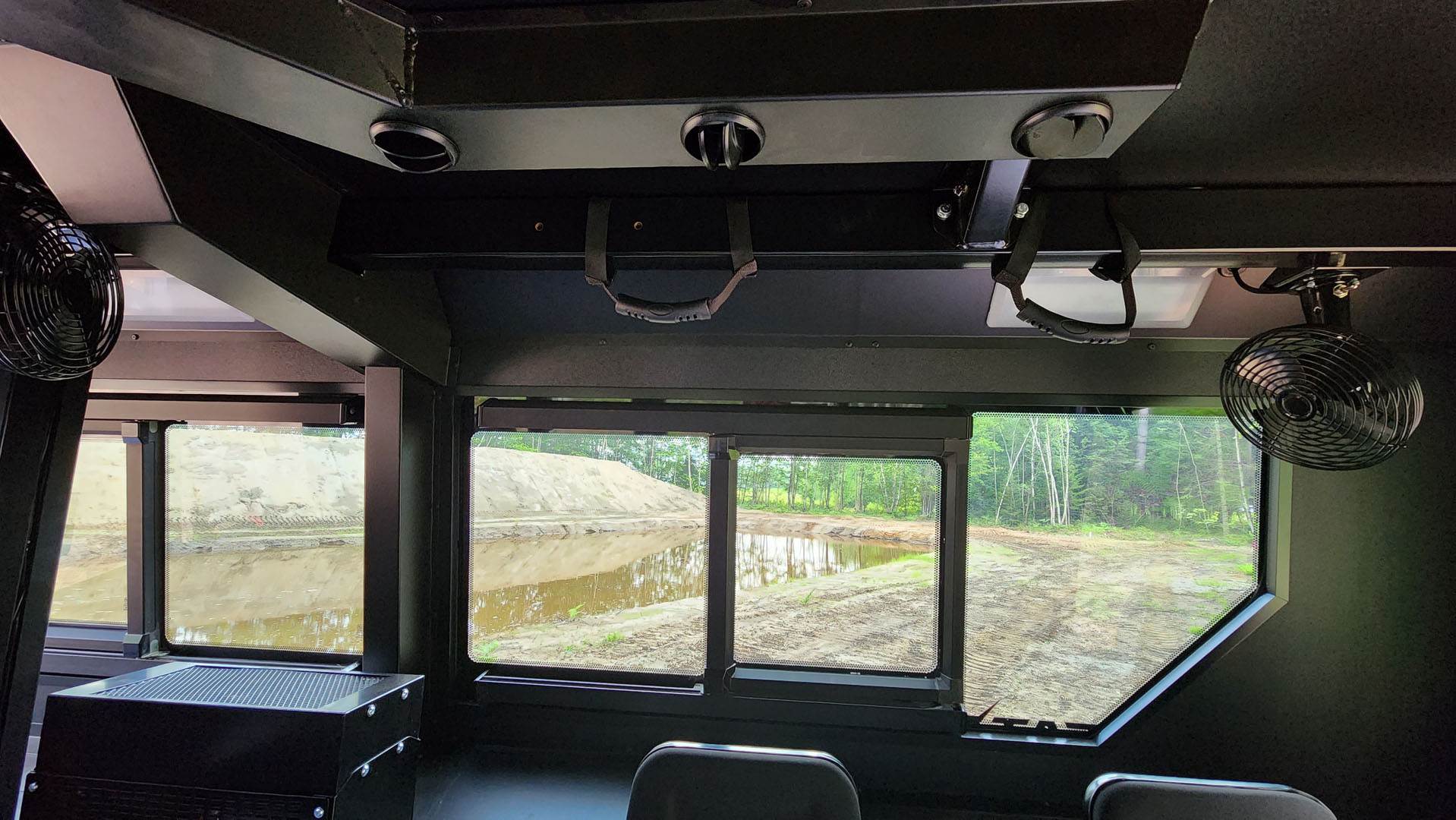

- Ventilation fan
- Rear forward facing seats
- Radio Bluetooth
- Fuel cab heater
- Front feet heater
- 110V heater cold engine water and transmission oil
- Fuel heater for engine water and transmission oil
Frequently asked questions
What tire pressure do you maintain for optimal performance?
We run the tires at a pressure between 1 to 6 psi, with the ability to set different pressures for each axle for optimal performance.
Do you use exhaust gas for tire inflation?
No, Fat Truck uses only fresh air for tire inflation, as using exhaust gas is not safe for the occupants.
Can a crane be added on the Fat Truck 8x8 Hauler?
Yes, we’ve thought of everything! The 8X8 Hauler is equipped with a PTO, enabling it to power a variety of implements including dump bodies, cranes, mulchers, hydrovacs, and firefighting equipment.
What is the ground pressure exerted by the Fat Truck 8x8 Hauler?
Fully loaded with 5,000 lbs, the vehicle exerts just 1.8 psi on the ground, which is five times less than a human footprint!
What is the length of the Fat Truck 8x8 Hauler?
It boasts an impressive length of 27 feet.
What is the maximum passenger capacity of the vehicle?
Comfort all around for 2 passengers in the front and 2 passengers in the back.
