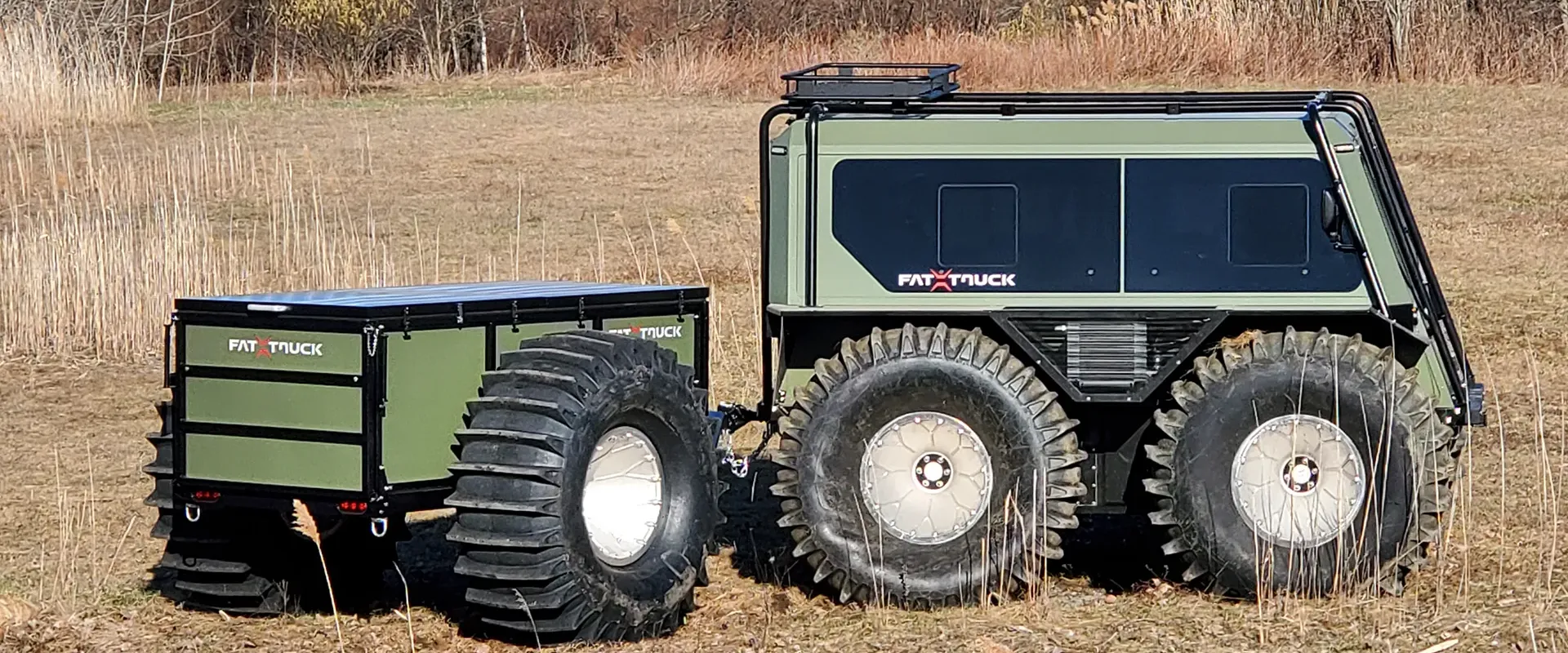

Amphibious Trailer
Our Amphibious Trailer is designed to enhance off-road vehicle capabilities by transporting heavy loads of up to 2,200 lbs across land and water. Designed for extreme conditions, it features robust construction. Ideal for industrial and remote applications, it ensures reliable performance and versatility in challenging environments.
2,200 lbs payload capacity while maintaining amphibious capabilities
Sealed door covers
Rear tailgate with step and grab handles for easy entry and load securing
Six safety tie-down D-rings
Removable top covers
Built robust for off-road use
Amphibious trailer specifications
| Interior width | 45 in (1138 mm) |
| Total width | 100 in (2540 mm) |
| Interior length | 99 in (2516 mm) |
| Total length | 137 in (3470 mm) |
| Height | 66 in (1676 mm) |
| Shipping weight | 1465 lb (665 kg) |
| Axles | 1 |
| GVWR | 3665 lb (1665 kg) |
| Payload | 2200 lb (1000 kg) |
| Ball type | Pintle eye |
| Connector | 4 pins |
| Tire type | FAT TRUCK LGP 640 X 640 X 610 |
| Tire inflation cold | 4.5 PSI (31 kPa) |
| Rim | 24″ |
| Brakes type | N/A |
| Steel type | Steel & Aluminum |
| Off-road use only |
Frequently asked questions
What tire pressure do you maintain for optimal performance?
We run the tires at a pressure between 4 to 6 psi.
What is the payload?
The Amphibious Trailer boasts a generous payload capacity of 2,200 lbs, capable of handling any terrain and even traversing water.
What is the weight?
The base weight of the Amphibious Trailer is 1,465 lbs.
Is it suitable for use on regular roads?
It can be towed at speeds up to 30 mph, but it’s specifically designed for off-road use only.
Which vehicles are compatible for attaching the Amphibious Trailer?
It can be easily attached and is compatible with the Fat Truck 2.8 and 8×8 series.
