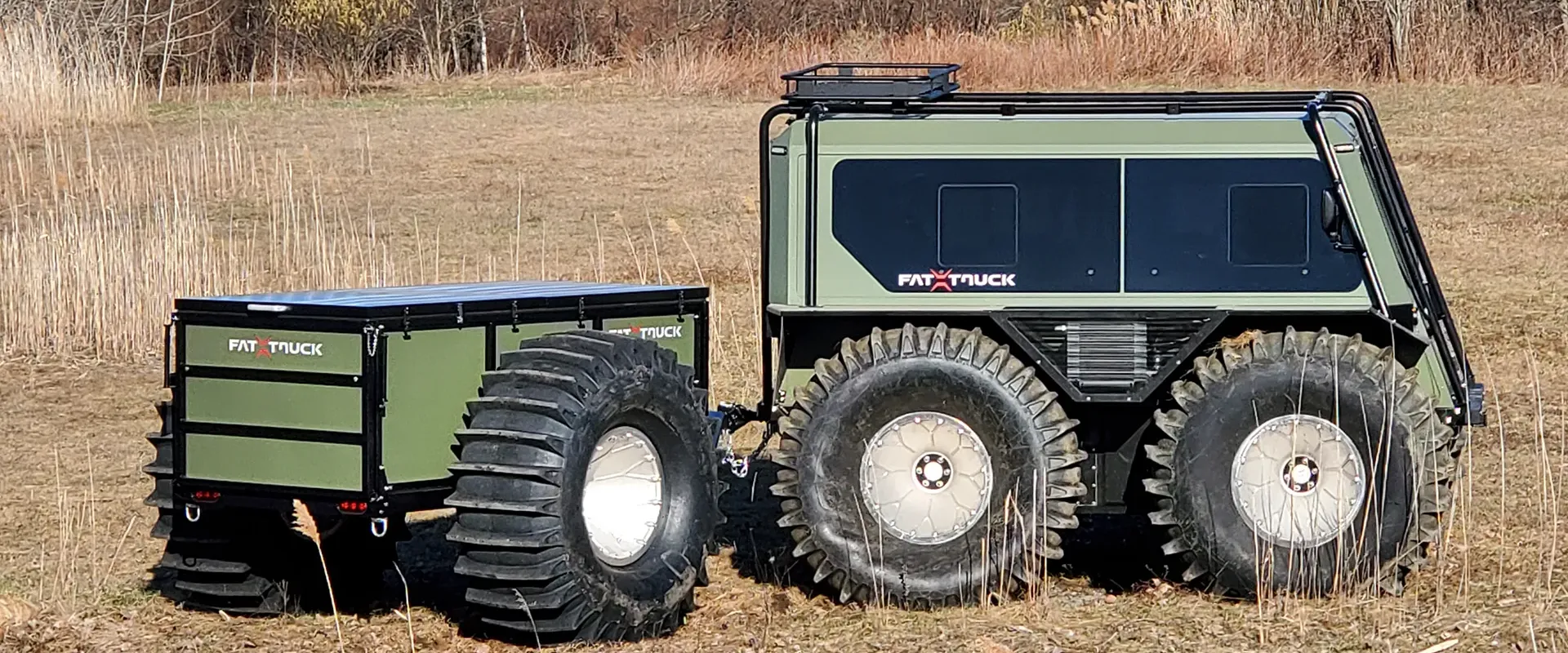

Amphibious Trailer
Our Amphibious Trailer is designed to enhance off-road vehicle capabilities by transporting heavy loads of up to 3,535 lbs on land and 2,200 lbs on water. Designed for extreme conditions, it features robust construction. Ideal for industrial and remote applications, it ensures reliable performance and versatility in challenging environments.
3,535 lbs payload capacity on land and 2,200 lbs on water
Sealed door covers
Rear tailgate with step and grab handles for easy entry and load securing
Six safety tie-down D-rings
Removable top covers
Built robust for off-road use
Amphibious* trailer specifications
| Interior width | 45 in (1138 mm) |
| Total width | 100 in (2540 mm) |
| Interior length | 99 in (2516 mm) |
| Total length | 137 in (3470 mm) |
| Height | 66 in (1676 mm) |
| Base weight | 1465 lb (665 kg) |
| Axles | 1 |
| GVWR | 5000 lb (2268 kg) |
| Payload on land | 3535 lb (1603 kg) |
| Payload on water | 2200 lb (1000 kg) |
| Ball type | Pintle eye |
| Connector | 4 pins |
| Tire type | FAT TRUCK® LGP 1640 X 640 X 610 in |
| Tire inflation cold | 4.5 PSI (31 kPa) |
| Rim | 24 in |
| Brakes type | N/A |
| Steel type |
Steel & Aluminum |
| * For off-road use only |
Frequently asked questions
What tire pressure do you maintain for optimal performance?
We run the tires at a pressure between 4 to 6Â psi.
What is the payload?
The Amphibious Trailer boasts a generous payload capacity of 3,535 lbs on land and 2,200 lbs on water.
What is the weight?
The base weight of the Amphibious Trailer is 1,465 lbs.
Is it suitable for use on regular roads?
It can be towed at speeds up to 30Â mph, but it’s specifically designed for off-road use only.
Which vehicles are compatible for attaching the Amphibious Trailer?
It can be easily attached and is compatible with the Fat Truck FT3 and FT5 series.
